公司名稱：江蘇省江陰市普友粉體設備有限公司
會員級別：免費會員

主要用途: Main Application

      該機組適用于制藥、食品、化工等行業。具有風冷、無篩網等多種性能，它不受物料粘度、軟硬度及纖維等限制，對任何物料都能起到較好的粉碎效果。特別適用于粉碎帶纖維的中藥材、帶一定油性的物料。

The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.

工作原理: Working Method

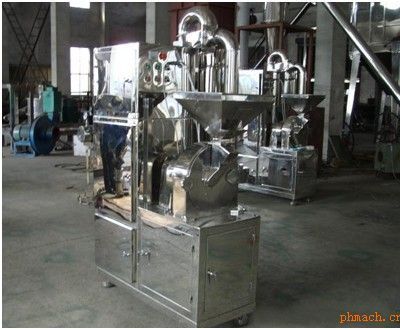

       該機由加料斗，分級輪，粉碎刀片，齒圈，粉碎電機，出料口，風葉，集料箱，吸塵箱等部分組成，物料由加料斗進入粉碎室，通過高速旋轉的刀片進行粉碎，調節分級輪與分級盤的距離來達到所要求的物料細度，高速旋轉的風葉把達到要求的物料從粉碎室通過負壓風引到下料器中，沒有達到要求的物料繼續在粉碎室中粉碎，粉塵經布袋或濾筒過濾回收，該機組按GMP標準設計，結構簡單，操作清理方便，噪音小，產量高，設備采用不銹鋼材料制作，粉碎過程中無粉塵飛揚。

The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc. Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

操作及注意事項：

1、使用前，先檢查機器所有緊固件是否擰緊，皮帶是否張緊。
2、主軸運轉方向必須符合防護罩上所示箭頭方向，否則將損壞機器，并可能造成人身傷害。
3、檢查電器是否完整。
4、檢查機器粉碎室內有無金屬等硬性雜物，否則會打壞刀具，影響機器運轉。
5、物料在粉碎前一定要檢查純度，不允許有金屬硬雜物混入，以免打壞刀具或引起燃燒等事故。
6、機器上的油杯應經常注入潤滑油，保證機器正常運轉。
7、停機前停止加料，如不繼續使用，要清除機內遺留物。
8、定期檢查刀具同篩網是否損壞，如有損壞，應立即更換。
9、使用時機體會有微小振動，一定要將機蓋連接手柄擰緊，避免事故發生。
