GPQ微型多功能干燥實驗機，將噴霧干燥、流化床干燥、噴霧造粒、蒸發濃縮、氣流干燥等多種工藝操作，集中到一臺占地不到0.5平方米的實驗機上，相對于生產性設備，投資少、成本低、設備體積小、占地面積少、處理量小、操作靈活多變；滿足科研以及企業新產品開發的需求；適合于大學、科研院所、企業等從事新產品研發，特別是昂貴產品的實驗研究�？蓮V泛應用于生物、化工、醫藥、食品、染料、輕工和農藥等領域的噴霧、造粒、蒸發等干燥加工過程。

GPQ mini multifunction experimental dryer centralizes suchvarious processes as spraying drying, fluidized bed drying, fluidized bed spray granulation, evaporation and concentration, and pneumatic drying onto a single machine occupying less than 0.5 square meters. Compared with productive equipment, it has a good many merits as follows, low investment and cost, small bulk, less occupation and throughput, and flexible operation. It is suitable for the demands of the new products development of the college, scientific research institution, enterprises, especially the expensive products development. It can be widely used in the various drying processes in such the fields as biology, chemical, pharmacy, food, dyestuff, light industry and pesticide, etc.

噴霧干燥過程：漿料經過蠕動泵送至氣流式噴嘴，空氣由鼓風機引入電加熱器，加熱后經布風板由塔頂進入塔內，與由噴嘴霧化的漿料霧滴進行質、熱交換，完成瞬間蒸發和瞬間干燥，從而得到干粉顆粒，較粗干粉從塔底排出，較細干粉經旋風分離器回收，微粉由布袋除塵器收集后排空。

Spray drying process:

Air is heated in electric heater through the fan, then goes into the spray dryer through the top. Slurry flows into pneumatic atomizing nozzle from liquid material tank by peristaltic pump, atomized into small droplets by the compressed air come from the nozzle. The small droplets spurt out downward, mixes with hot air of the drying chamber, along with water evaporating instantly. Slurry turns into fine powder in a moment by drying. The coarse powder is collected at the bottom of spray dryer, subsequently the fine powder is gathered in the cyclone. The exhaust air is discharged after recovery in the bag filter.

流化床干燥過程：空氣由鼓風機引入電加熱器，加熱后經布風板進入流化床，物料由流化床頂部預先加入，通過調整進風量，使物料在熱空氣的作用下保持流化狀態，實現物料的流化干燥。干粉產品由旋風分離器收集，尾氣經布袋除塵器除塵后排空。

Fluidized bed drying process:

Air is heated in electric heater through the fan, then goes through the gas distributor into the fluidized bed dryer; and material enters the fluidized through the top. Materials keep fluidized in virtue of the flotage effect of the hot air. Energy and mass exchange in the fluid bed dryer. The exhaust air goes into the cyclone to recover the entrained dust, then discharges after the bag filter.

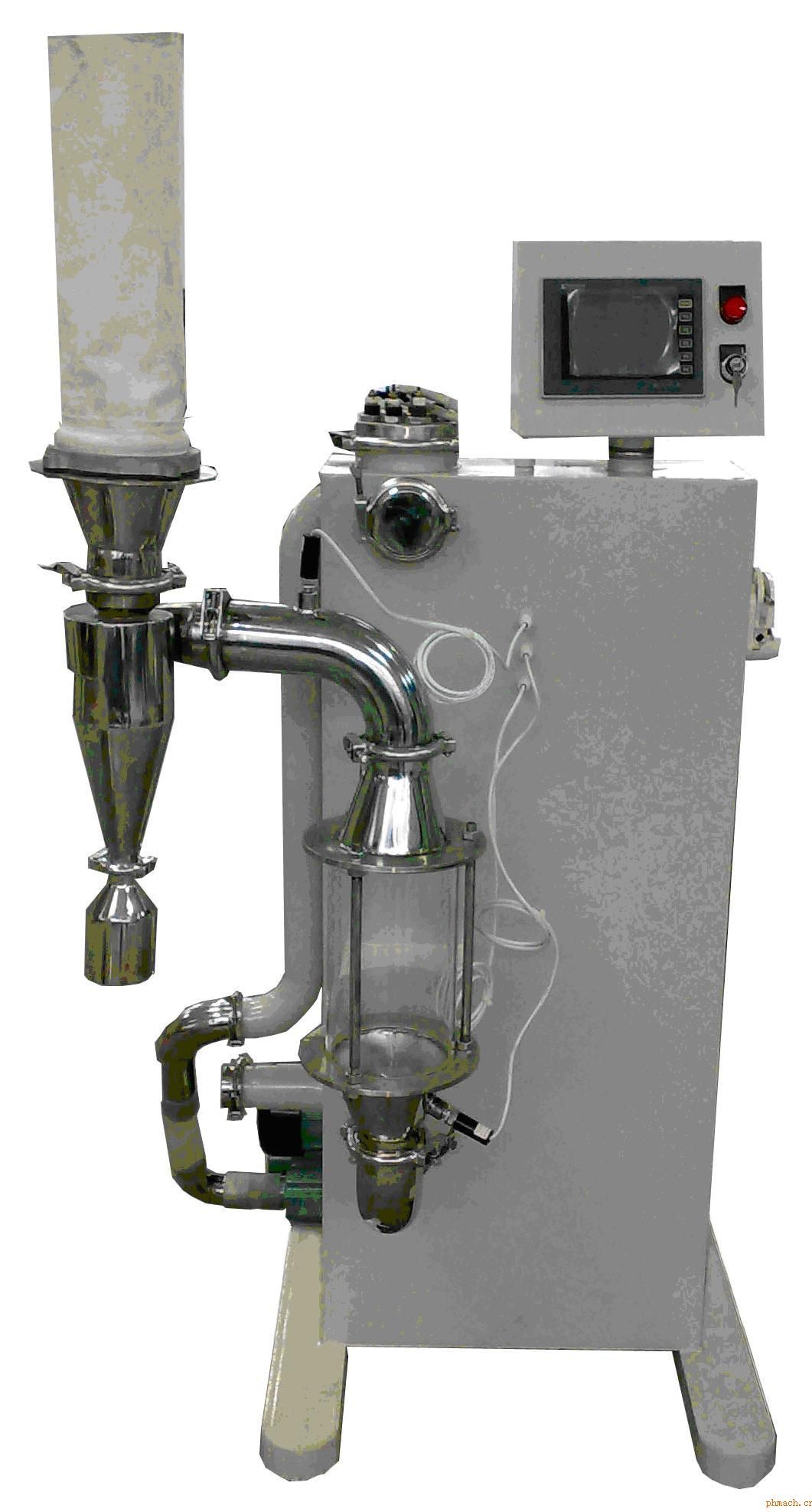

GPQ噴霧、流化床多功能實驗機主機體長700mm，寬700mm，高1600mm，由兩部分組成，左半部分為電加熱器，主要用于干燥過程中換熱介質的加熱；右半部分為自動控制系統，采用臺達觸摸屏，PLC自動控制系統，可對實驗過程中進出風溫度、風量、干燥時間進行設定，并自動控制。通過在主機上安裝不同的配套組件，可實現對溶液、懸濁液、糊狀物等物料的噴霧干燥、流化床干燥、氣流干燥、噴霧造粒等工藝過程，得到粉狀產品。

GPQ multifunction mini experimental dryer’s main body is 700mm long, 700mm wide, 1600mm high, and consists of two major parts. The left part is the electric heater which is used for the heating of the air; the right part is the automatic control system, PLC, which can automatically control the inlet and outlet air temperatures, inlet air rate and drying time during the drying process according to the set value. By fixing various sets of subassembly onto the body, the processes of Spray Drying, Fluidized Bed Drying, Spray Granulation, and so forth, can be implemented, to gain powder products

流化床干燥  Fluidized Bed Drying

噴霧干燥  Spray Drying

設計條件：

Design parameter

結構形式：整體移動式；

Configuration: Integrally Move

外形尺寸：（長×寬×高）700mm×700mm×1600mm；

Figuration: ( length×width×height )700mm×700mm×1600mm

加熱方式：電加熱；

Heating Mode：Electric Heating

電加熱功率：9kW；

Electric Heater Power: 9kW

壓縮空氣壓力：≤0.3MPa

Compressed Pneumatic Pressure: ≤0.3MPa

進風溫度：80℃～300℃（可調節，自動控制）

Inlet Air Temperature: 80℃～300℃ (Adjustable, automatic control )

水分蒸發量：1000-2000ml/h

Water Evaporation Rate: 1000-2000ml/h

整機重量：100kg

Total weight: 100kg

控制方式：臺達觸摸屏、PLC自控

Control Mode: PLC
