DPT130D變頻調速泡罩包裝機，采用臺灣臺達變頻調速、是同類機型效率的一倍，適用各種不同規格的素片、糖衣片、膠囊、膠丸及異形片粒狀等藥品。

    該機是膽式內加熱鋁塑泡罩包裝機，由于在加熱輥表面采用先進的涂氟技術，因而使PVC受熱均勻，泡罩成型挺實。停機、開機不存在丟泡現象，避免包裝材料的浪費。吸泡、充填、網紋熱封、板塊沖裁皆可連續作業、并具有斷裂線及批號打印功能；無邊沖裁可節省包裝材料4%-6%。該機的優點是不用氣源，熱封輥的動作均采用電推桿，成型及封合為分體式，該機具有結構簡單，操作方便，主要部件全部采用不銹鋼制造，外表全封閉，既美觀又衛生，符合GMP標準。

主要技術參數:

1、包裝材料：PVC130×0.25（mm）PTP130×0.02（mm）
2、成型深度：2-15mm
3、沖裁次數：25-45次/分
4、包裝效率：4-8萬粒/小時
5、耗水量：2.91L/min
6、電源總功率：3.0KW
7、電壓：380V/50HZ 220V/50HZ
8、重量：600kg
9、外形尺寸（長×寬×高）：1700×800×1630（mm）

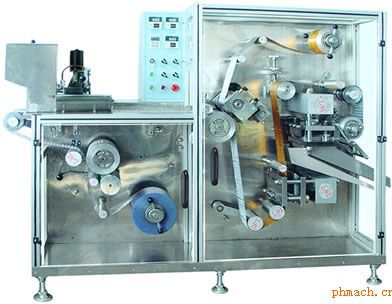

Type DPT130D Variable-frequency Speeding Blister Packing Machine

    Type DPT130D variable-frequency speeding blister packing machine uses Taiwan Taida variable-frequency speeding. The frequency is as twice as other same machines and is applicable for different specs of white pills, sugar-coat pills, capsules, caps, and special pills and granules.
    It is the gallbladder-type inner-heating aluminum-plastic blister packing machine. Because it adopted the advanced fluorin-painting technology on the surface of heating rollers, so PVC can get even heat, and firm molding blister packing. There is no phenomenon of losing bubbles when stops and starts packing. Therefore it can avoid waste of wrappers. Following working procedures can be performed continuously, including absorbing bubbles, filling, and wove heating-seal. It can print batch numbers and split lines. The plank cutting without edges can save 4%-6% of wrappers. The greatest advantage of this machine is that it doesn’t use gas source and the electric handspike drives heating rollers, and separate molding and sealing. It has the advantages of simple structure, convenient operation. The main components are made by stainless steel. Beautiful and sanitized all-sealed appearance accords with GMP standard.

Specifications:
1.Wrapper: PVC130×0.25（mm）PTP130×0.02（mm）

3. Cutting frequency: 25 —45times/Min
4. Packaging efficiency: 40000-80000 granules/hour
5. Water consumption: 2.91L/min
6. Total power supply: 3.0KW
7. Voltage: 380V/50HZ 220V/50HZ
8. Weight: 600kg
9. Dimension (Length × Width × Height): 1700×800×1630（mm）
