產品特點

本系統采用密閉內循環方式，按潔凈區等級配置、混合效果好。
罐體采用SUS304或316L不銹鋼制作，罐內配有自動噴淋清洗機頭，采用衛生級 0.20μm呼吸器等裝置,確保生產過程符合GMP質量標準要求,可根據用戶生產要求設計系統配置。

產品簡介

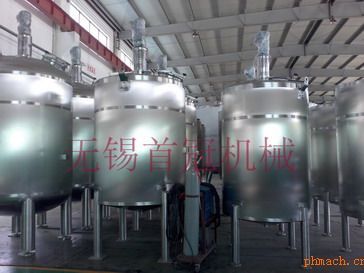

該系列容器適用于制藥行業的濃/稀配之用，罐體設有夾層,可加熱、冷卻，內表面采用電解鏡面拋光，封頭(錐形)均經旋壓加工、符合GMP標準。本系列濃、稀配罐嚴格遵循《藥品生產質量管理規范》GMP總則(1998年修訂版)第三十一、三十二條要求，根據GB150-98《鋼制壓力容器》，JB/T4735-97《鋼制焊接常壓容器》要求進行設計，制造，檢測驗收。

產品構造

1、容器保溫材料采用耐高溫、抗老化聚胺脂發泡或珍珠棉。
2、接口采用國際通用標準ISO快裝卡盤式，內膽選用進口不銹鋼SUS316L或SUS304制造，內表面鏡面拋光至Ra≤0.28μm，外表面拋亞光、鏡面、噴砂或冷軋?jiān)�色亞光，符合GMP醫藥標準 。
3、攪拌器的密封采用進口衛生級機械攪拌密封或磁力全密封攪拌裝置，攪拌轉速可任選。
4、管口設有液位計口(靜壓式、電容式、無觸點式、超聲波式、玻璃管式)、空氣呼吸口、溫度計(數顯式或表盤式)、CIP清洗口、視鏡、防爆視燈(視鏡視燈一體化)、SIP滅菌口、進出液口及衛生人孔等。
5、容積有10L-10000L等規格，也可根據客戶實際需要進行設計，更加貼近客戶要求。

Product characteristics

The system adopts closed inner circulation mode, according to the level of clean area configuration, mixing effect is good.

The tank is made of SUS304 or 316L stainless steel. The tank is equipped with automatic spray cleaning machine head and adopts sanitary 0.20μm respirator and other devices to ensure that the production process meets the requirements of GMP quality standards. The system can be designed according to the user's production requirements.

Product introduction

This series of containers is suitable for the concentration/dilution of the pharmaceutical industry, the tank body is equipped with a sandwich, can be heated and cooled, the inner surface is polished by electrolytic mirror, the head (cone) are spun processing, in line with GMP standards. This series of concentrated and dilute tanks strictly comply with the requirements of Article 31 and 32 of the General provisions of GMP (1998 Revision) of the "Good Manufacturing Practice", according to GB150-98 "Steel pressure Vessel",

JB/T4735-97 "Steel welded atmospheric pressure vessel" requires design, manufacturing, testing and acceptance.

Product structure

1, the container insulation material is made of high temperature resistant, anti-aging polyurethane foam or pearl cotton.

2, the interface adopts the international standard ISO quick mount chuck type, the inner liner is made of imported stainless steel SUS316L or SUS304, the inner surface mirror polishing to Ra≤0.28μm, the outer surface polishing matte, mirror, sandblasting or cold rolling primary color matte, in line with GMP medical standards.

3, the seal of the agitator adopts imported sanitary mechanical mixing seal or magnetic fully sealed mixing device, mixing speed can be selected.

4, the pipe port is equipped with a liquid level gauge port (static pressure, capacitance, non-contact, ultrasonic, glass tube), air breathing port, thermometer (digital display or dial type), CIP cleaning port, sight mirror, explosion-proof light (sight mirror and light integration), SIP sterilization port, inlet and outlet and sanitary manhole.

5, the volume of 10L-10000L and other specifications, can also be designed according to the actual needs of customers, more close to customer requirements.
